| CMM Micro-Connector |
 |
CRIMP CONTACTS
Preferred wire type BS G210 (type A)
Also suitable for use with 24 AWG DEF-STAN 61-12 (Part 6 type 1) PVC
Contact withdrawl tool (C12935) is available as an
optional accessory. It is recommended that the plastic housing be replaced
if any of the contacts have been inserted more than once.
| Product Selection Guide | ||
| Description |
Pack Quantity
|
Part Number
|
| Female crimp S 24-28AWG |
100
|
30-C12468
|
| Female crimp C 22AWG |
100
|
30-C13064
|
| Male crimp S 24-28AWG |
100
|
30-12467
|
| Male crimp C 22AWG |
100
|
30-12960
|
TOOLS
 |
 |
| Hand Crimp C22520 and Positioner for male and female contacts C12929 |
Contact insertion/exertion tool C12935
|
 |
 |
|
C12237 for central coaxial contact
|

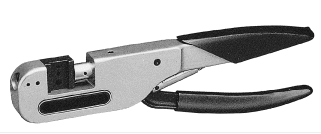

C12238 for crimping coaxial shield
|
 |
 |
|
C12230 contact withdraw tool
|
C12368 contact withdrawl tool
|
|
Crimp type
|
Wire size (AWG)
|
Crimp tool setting
|
|
C
|
22
|
6
|
|
S
|
24
|
7
|
|
S
|
26
|
6
|
|
S
|
28
|
6
|
ACCESSORIES
| Product Selection Guide | ||
| Description |
Pack Quantity
|
Part Number
|
| Strain Relief Strap |
100
|
30-13218
|
| Latches |
100
|
30-13201
|
