| CMM Micro-Connector |
 |
OPTIMATIC 30 SPECIAL FIBRE OPTIC CONTACTS FOR SINGLE MODE AND MULTIMODE FIBRES
Male - 30-53XX
Dimensions mm

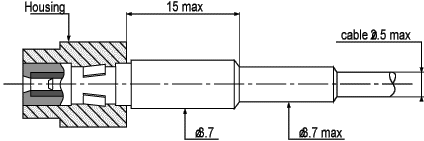

Female - 30-63XX
Dimensions mm
Tooling
A complete set of tools is availble for this connector - contact us for further information
| Characteristics | |
| Typical insertion loss | |
| 50/125u fibres and 62.5/125u fibres |
0.3dB
|
| 200/230u fibres |
0.15dB
|
| Reproducibility |
+/-0.1dB
|
| Tempertaure stability | |
| from -55 to + 125°C |
+/-0.1dB
|
| from -67 to + 257°F |
+/-0.1dB
|
| Ferrule |
ceramics dia 1.25
|
| Sleeve |
ceramics or UBe2
|
| Optical contacts |
elasticity
|
| Cable retention |
potting and crimping
|
| Optical faces |
potting, cleaving and polishing
|
