| CMM Micro-Connector |
 |
SPECIAL CRIMP COAXIAL CONTACTS

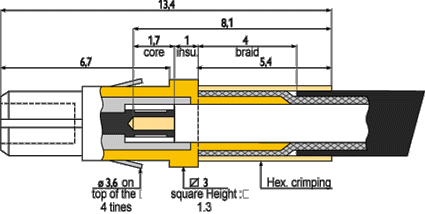

Male Straight - 30-13XX-SS
Dimensions mm

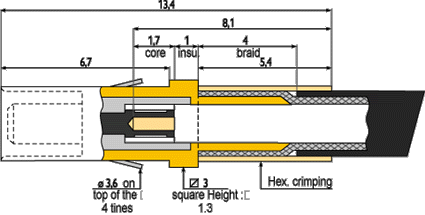

Female Straight - 30-23XX-SS
| XX | 20 | dia 2 max cable |
| XX | 24 | dia 2.4 max cable (double braid) |
| XX | 26 | dia 2.7 max cable |
Core crimping: setting on tool C12237
Position: 2 for cable dia ext. 2
Position 3 for cable dia ext. 2.4 or 2.6
On request availble for other coax cables: 50VMTX (dia 1.2), UT47 and UT85

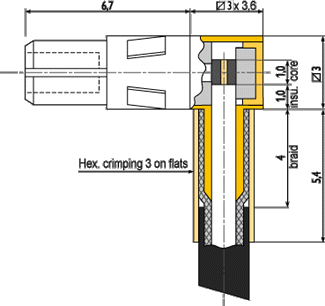

Male 90° - 30-14XX-ZS
Dimesions: mm

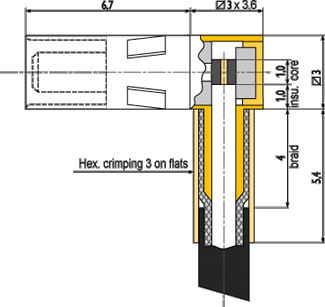

Female 90° - 30-24XX-ZS
Dimensions: mm
| XX | 12 | dia 1.2 max cable |
| XX | 20 | dia 2 max cable |
| XX | 26 | dia 2.7 max cable |
| Technical Features | |
| Material | |
| Spring loaded parts |
Be/Cu gold plated
|
| Other metallic parts |
Copper alloy
|
| Insulator |
PTFE
|
| Retaining clip |
Be/Cu Ni plated
|
| Mechanical | |
| Endurance |
500 cycles
|
| Insertion force |
From 0.60 to 5 N per contact
|
| Extraction force |
From 0.50 to 2 N per contact
|
| Overlaping |
1.3mm min
|
| Contact replacement in insulator |
5 times
|
| Electrical and Environmental Characteristics | |
| Impedance |
50R
|
| Contact resistance |
max 6mR
|
| Maximum voltage (sea level) |
1000V RMS
|
| Operating voltage (sea level) |
180V AC/500ma
|
| Insulation resistance |
10000000MR/250V RMS
|
| VSWR |
<1.05 + 0.04F GHz
|
| Frequency range |
6GHz depending on cable
|
| Operating temperature |
from -55°C to + 125°C
|
| Salt spray test |
96 hrs
|
| Humidity test |
56 days
|
