SPECIAL HIGH POWER CONTACTS

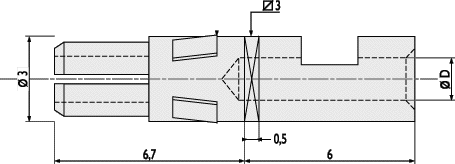

Male Solder High Power Contact- 30-33XX
Dimensions mm

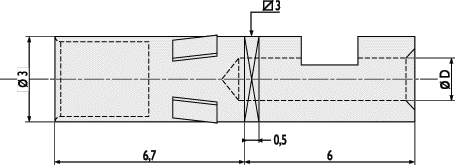

Female Solder High Power Contact- 30-43XX
Dimensions mm
| dia D | AWG | I (A) | XX |
| 2.3 | 12 | 20 | 20 |
| 2 | 14 | 15 | 15 |
| 1.5 | 16 | 10 | 10 |
Male Straight PCB - 30-3300XX
Dimensions mm
| Unloaded | Loaded | length (L) |
| 30-3300CMM | 3300CMM | 3.5 mm |
| 30-3300-45 | 3300-45 | 5 mm |
Female Straight PCB- 30-4300-XX
Dimesions: mm
| Unloaded | Loaded | length (L) |
| 30-4300CMM | 4300CMM | 3 mm |
| 30-4300-45 | 4300-45 | 5 mm |

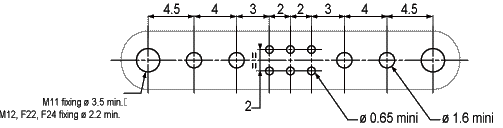

PCB Layout for mixed signal and high power
Dimensions mm
Male 90°- 30-3400-XX
Dimensions: mm
| Unloaded | Loaded | length (L) |
| 30-3400CMM | 3400CMM | 3.5 mm |
| 30-3400-45 | 3400-45 | 5 mm |

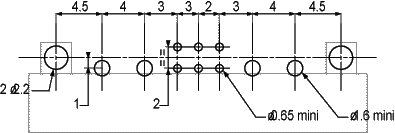

Pcb layout for mixed signal and high power
Dimensions: mm
| Technical Features | |
| Material | |
| Spring loaded parts |
Be/Cu gold plated
|
| Other metallic parts |
Copper alloy
|
| Insulator |
PTFE
|
| Retaining clip |
Be/Cu Ni plated
|
| Mechanical | |
| Endurance |
500 cycles
|
| Insertion force |
From 0.60 to 5 N per contact
|
| Extraction force |
From 0.50 to 2 N per contact
|
| Overlaping |
1.3mm min
|
| Contact replacement in insulator |
5 times
|
| Electrical and Environmental Characteristics | |
| Impedance |
50R
|
| Contact resistance |
max 6mR
|
| Maximum voltage (sea level) |
1000V RMS
|
| Operating voltage (sea level) |
180V AC/500ma
|
| Insulation resistance |
10000000MR/250V RMS
|
| VSWR |
<1.05 + 0.04F GHz
|
| Frequency range |
6GHz depending on cable
|
| Operating temperature |
from -55°C to + 125°C
|
| Salt spray test |
96 hrs
|
| Humidity test |
56 days
|
