| CMM Micro-Connector |
 |
SPECIAL PCB COAXIAL CONTACTS

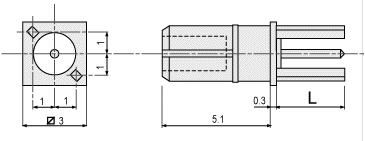

Male Straight - 30-1300-XX
Dimensions mm
| Unloaded | Loaded | length (L) |
| 30-1300CMM | 1300CMM | 3 mm |
| 30-1300-45 | 1300-45 | 4.5 mm |

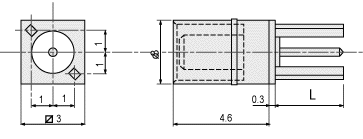

Female Straight - 30-23XX-SS
Dimensions mm
| Unloaded | Loaded | length (L) |
| 30-2300CMM | 2300CMM | 3 mm |
| 30-2300-45 | 2300-45 | 4.5 mm |

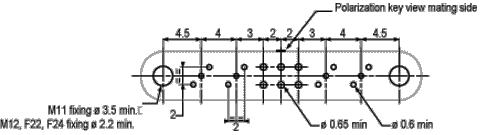

PCB Layout for mixed signal and coax
Dimensions mm

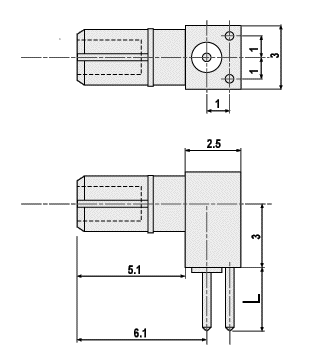

Male 90° - 30-1400-XX
Dimesions: mm
| Unloaded | Loaded | length (L) |
| 30-1400CMM | 1400CMM | 3 mm |
| 30-1400-45 | 1400-45 | 4.5 mm |

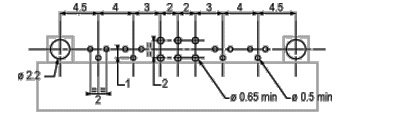

PCB Layout for mixed signal and coax
Dimensions mm

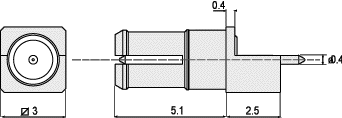

Male SMD - 30-1500 CMM
Dimensions: mm
| Product Selection Guide | |||
| Part Number |
Number of Contacts
|
A
|
B
|
| 222Y 0 Fxx-22-1500 CMM |
4
|
26
|
21
|
| 222Y 0 Fxx-33-1500 CMM |
6
|
34
|
29
|
| 222Y 0 Fxx-44-1500 CMM |
8
|
42
|
37
|
| 222Y 0 Fxx-66-1500 CMM |
12
|
58
|
53
|
Select here for (xx) fixing details

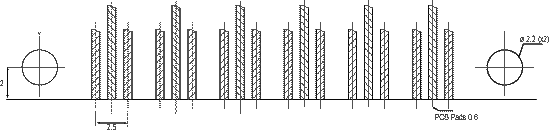

Pcb layout
| Technical Features | |
| Material | |
| Spring loaded parts |
Be/Cu gold plated
|
| Other metallic parts |
Copper alloy
|
| Insulator |
PTFE
|
| Retaining clip |
Be/Cu Ni plated
|
| Mechanical | |
| Endurance |
500 cycles
|
| Insertion force |
From 0.60 to 5 N per contact
|
| Extraction force |
From 0.50 to 2 N per contact
|
| Overlaping |
1.3mm min
|
| Contact replacement in insulator |
5 times
|
| Electrical and Environmental Characteristics | |
| Impedance |
50R
|
| Contact resistance |
max 6mR
|
| Maximum voltage (sea level) |
1000V RMS
|
| Operating voltage (sea level) |
180V AC/500ma
|
| Insulation resistance |
10000000MR/250V RMS
|
| VSWR |
<1.05 + 0.04F GHz
|
| Frequency range |
6GHz depending on cable
|
| Operating temperature |
from -55°C to + 125°C
|
| Salt spray test |
96 hrs
|
| Humidity test |
56 days
|
