| Crimpflex Connector System |
 |
LOW INSERTION FORCE FEMALE CONTACT 11506
Features
- Part Number : 11506-12
- Plating : Tin plating of 5 microns Sn Pb
- Pitch : 2.54mm
- Reel Quantity : 35,000 contacts
- Part Number : 11506-32
- Plating : Tin plating 5 microns Sn Pb, Selective gold in mating area 0.2 micron
- Pitch : 2.54mm
- Reel Quantity : 35,000 contacts
- HE13(Au) = 1.5N Max, Number mating cycles 500
- HE14(Sn) = 3N Max, Number mating cycles 50

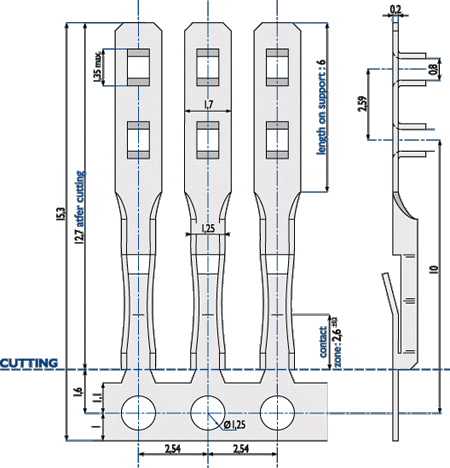

Package Outline Drawing
Dimensions : mm
Characteristics
| Specification | |
| Material | Phosphor Bronze |
| Contact Resistance | 5mW |
| Contact Resistance after Climatic Tests | 6mW |
| Withstanding Voltage | 1100 VRMS |
| Capacitance between two Contacts | 4pF max |
| Direct current rating per contact | 3A permanent |
| Alternating current rating per contact | 5A permanent |
| Operating Temp Range | -55ºC to +150ºC |
| Contact Resistance to stripping from circuit | >15N Min perpendicular to the tracks (breaking-up
of teh conductor) >50N Min parallel to the tracks (breaking-up of the conductor) |
| UL Certification | E125469 (M) |
| LNZ (CNET) | List 6145 for tin plated version HE14 List 6160 for gold plated version HE13 |
Contact Layout
