| Crimpflex Connector System |
 |
STANDARD MALE CONTACT 12887
Features
- Part Number : 12887-12
- Plating : Standard tin plating (others available on request)
- Pitch : 2.54mm
- Reel Quantity : 35,000 contacts
- Each pin is formed in an opposite direction to give a superior retention prior to soldering into the PCB holes

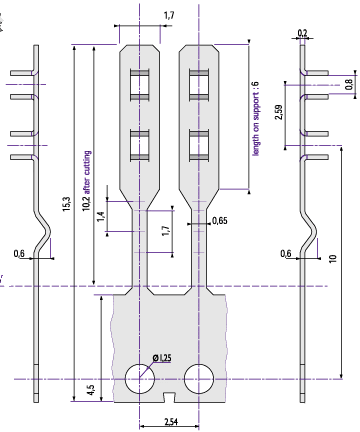

Package Outline Drawing
Dimensions : mm
Characteristics
| Specification | |
| Material | Phosphor Bronze |
| Contact Resistance | 5mW |
| Contact Resistance after Climatic Tests | 6mW |
| Withstanding Voltage | 1100 VRMS |
| Capacitance between two Contacts | 4pF max |
| Direct current rating per contact | 3A permanent |
| Alternating current rating per contact | 5A permanent |
| Operating Temp Range | -55ºC to +150ºC |
| Contact Resistance to stripping from circuit | >15N Min perpendicular to the tracks (breaking-up
of the conductor) >50N Min parallel to the tracks (breaking-up of the conductor) |
| UL Certification | E125469 (M) |
| LNZ (CNET) | List 6145 for tin plated version HE14 List 6160 for gold plated version HE13 |
Contact Layout
