2.54mm Pitch Connectors
FLAT CABLE TO WIRE NCCH254B SERIESFeatures and applications
- 2.54mm Pitch, for use with NCCT254B Crimp Terminal
- Mates with OL series Crimpflex Housing (Flat Cable) or NCCH254A (Wire)
- Available in 2 - 12 Ways
- Material: PBT+GF UL94V-O
- Colour: Black
-
Temerature range -25 to +85 Deg C

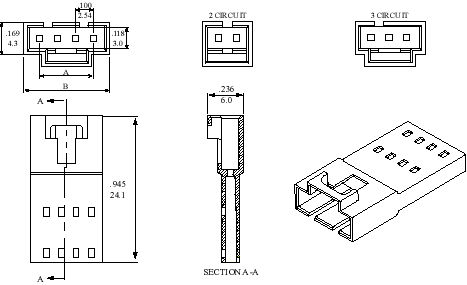

Package Outline Dimensions
|
No Of ways
|
Part No
|
Dimension in. (mm)
|
|
|
A
|
B
|
||
|
2
|
NCCH254B-02
|
0.100 (2.54)
|
0.280 (7.71)
|
|
3
|
NCCH254B-03
|
0.200 (5.08)
|
0.382 (9.7)
|
|
4
|
NCCH254B-04
|
0.300 (7.62)
|
0.48 (12.2)
|
|
5
|
NCCH254B-05
|
0.400 (10.16)
|
0.579 (14.7)
|
|
6
|
NCCH254B-06
|
0.500 (12.70)
|
0.681 (17.3)
|
|
7
|
NCCH254B-07
|
0.600 (15.24)
|
0.78 (19.8)
|
|
8
|
NCCH254B-08
|
0.700 (17.78)
|
0.882 (22.4)
|
|
9
|
NCCH254B-09
|
0.800 (20.32)
|
0.980 (24.9)
|
|
10
|
NCCH254B-10
|
0.900 (22.86)
|
1.079 (27.4)
|
|
11
|
NCCH254B-11
|
1.000 (25.4)
|
1.181 (30.0)
|
|
12
|
NCCH254B-12
|
1.100 (27.94)
|
1.28 (32.5)
|
Part Numbering System
MALE CRIMP TERMINAL NCCT254B SERIES
Features and Applications
- 2.54mm Pitch, for use with NCCH254B Terminal Housings
- 15,000 pices per reel
- 24-28 AWG Wire Gauge
- Material: Phosphor Bronze
- Tin or Gold Plated
- 0.65mm Square Contact

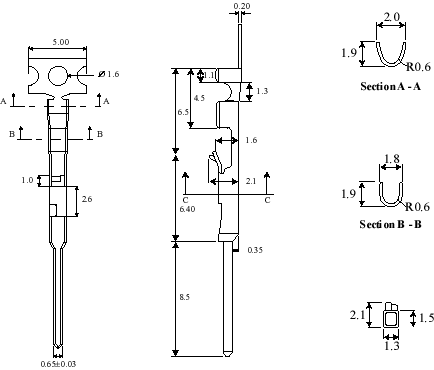

Package Outline Dimensions
Part Numbering System
