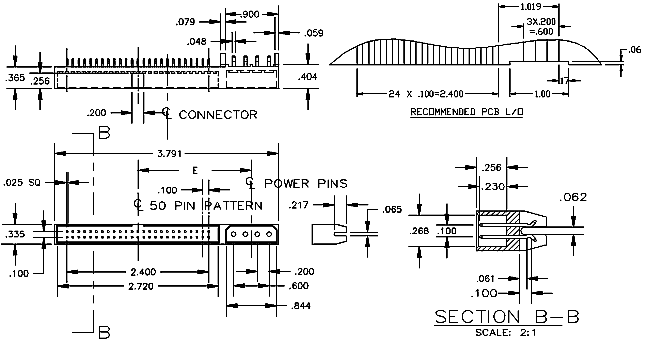

For use on Hard Drive DISK DRIVE IDE COMBO CONNECTOR 7514 Package Outline Drawing Part number 7506 has "E" dimension of 1.919".
This is equivalent to Berg p/n 61062-014. Contact us for part with "E"
dimension of 1.879". This mates with our p/n 7510. Characteristics
|
