Industry Pack Module Connector
IP MEZZANINE FEMALE THRU HOLE FOR IP MODULEWith locating Pins

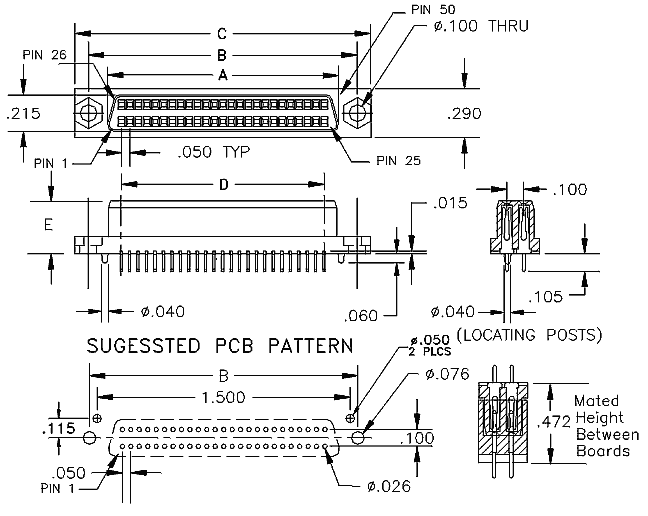

Package Outline Drawing
Dimensions: Inche's
Mates with either our N8061 or N8062 series.
Characteristics
| Product Selection Table | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N8065-XXYY |
34.70
|
1.366
|
40.39
|
1.59
|
44.45
|
1.75
|
30.50
|
1.20
|
G2
|
50
|
| Technical Characteristics | |
| Contact Material | Contact: Stamped, Phosphor Bronze |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260°C for 60 seconds |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| Insertion Force | 76 grams (2.7oz) (typ initial force per contact w/ .016" x.024" pin |
| Extraction Force | 46 grams (1.6oz) (typ initial force per contact w/ .016" x.024" pin |
