Modular Plugs and Sockets
PCB MOUNTING MODULAR JACK THROUGH-HOLE, SIDE ENTRY 2250
SERIES

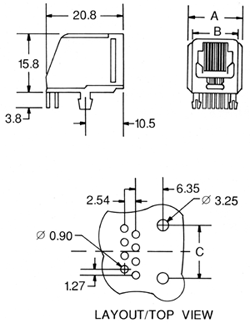

Package Outline Drawing
Dimensions : mm
Product Features:
- Meets FCC Part 68 rules and regulations
- Snap-in board retention tabs
- Selectively gold plated contacts
- UL approved
Characteristics
Electrical Characteristics |
Current rating |
1.5 Amps
|
Insulation resistance |
500 MW Min
|
Dielectric withstanding voltage |
1000 Volts RMS, 60Hz
|
Contact resistance |
20 mW Max
|
Specifications |
Housing material |
Glass filled PBT (UL 94V-0 rated)
Standard colour : Black
|
Contact material |
0.35mm Thickness Phosphor Bronze Alloy, plated
Gold in Contact area and Tin-lead on Tail, over
Nickel underplate |

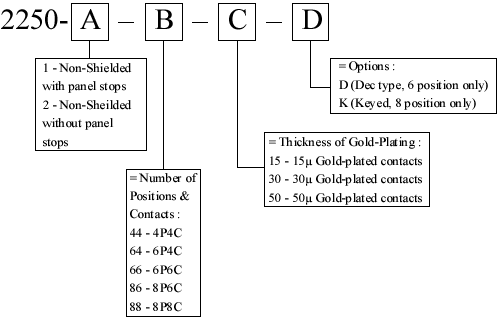

Ordering Information
NO of
Positions
|
NO of
Contacts
|
Dimensions mm
|
A
|
B
|
C
|
4
|
4
|
13.72
|
11.48
|
7.62
|
6
|
2/4/6
|
15.75
|
13.21
|
10.16
|
8
|
6/8
|
17.78
|
15.24
|
11.43
|
|
