Modular Plugs and Sockets
PCB MOUNTING MODULAR JACK THROUGH-HOLE, TOP ENTRY 2260 SERIES
Package Outline Drawing
Dimensions : mm
Product Features:
- Meets FCC Part 68 rules and regulations
- Shielded and Non-shielded types available
- Selectively gold plated contacts
- UL approved
Characteristics
| Electrical Characteristics | |
| Current rating |
1.5 Amps
|
| Insulation resistance |
500 MW Min
|
| Dielectric withstanding voltage |
1000 Volts RMS, 60Hz
|
| Contact resistance |
20 mW Max
|
| Specifications | |
| Housing material |
Glass filled PBT (UL 94V-0 rated) |
| Shield material | Tin-plated Brass |
| Contact material | 0.35mm Thickness Phosphor Bronze Alloy, plated Gold in Contact area and Tin-lead on Tail, over Nickel underplate |

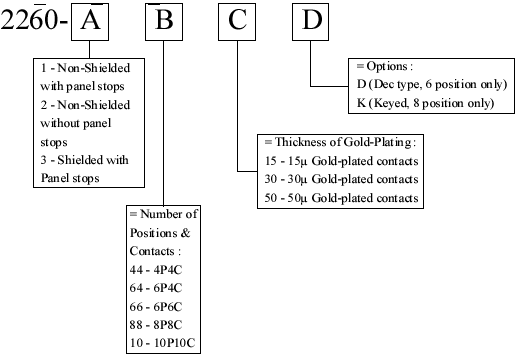

Ordering Information
|
NO of |
NO of |
Dimensions mm |
|||
|
A
|
B
|
C
|
D
|
||
|
4
|
4
|
13.72
|
11.43
|
7.80
|
7.63
|
|
6
|
2/4/6
|
16.00
|
13.46
|
9.80
|
10.16
|
|
8/10
|
8/10
|
18.03
|
15.49
|
11.80
|
11.43
|
