Modular Plugs and Sockets
PCB MOUNTING MODULAR JACK SIDE ENTRY, METAL FEET MOUNTING 2626 SERIES

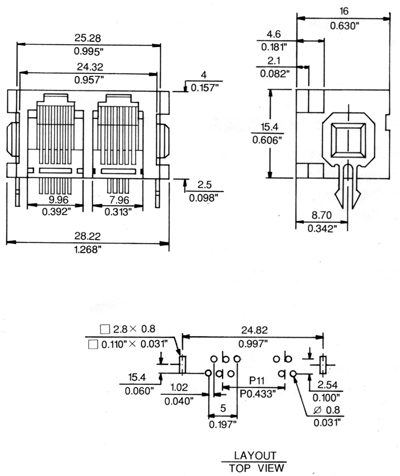

Package Outline Drawing
Dimensions : mm
Product Features:
- Meets FCC Part 68 rules and regulations
- Metal feet mounting
- Multiports type available
Characteristics
| Electrical Characteristics | |
| Current rating |
1.5 Amps
|
| Insulation resistance |
500 MW Min
|
| Dielectric withstanding voltage |
1000 Volts RMS, 60Hz
|
| Contact resistance |
20 mW Max
|
|
Specifications |
|
| Housing material |
Glass filled Nylon 66 (UL 94V-0 rated) |
| Metal feet material | 0.5mm Thickness Tin-plated Brass |
| Contact material | 0.46mm Diameter Phosphor Bronze Alloy, plated Gold |

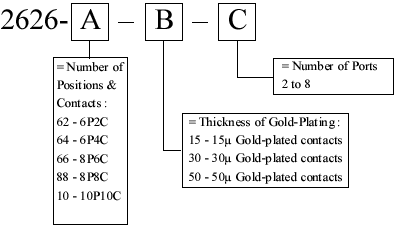

Ordering Information
