PCB MOUNTING MODULAR JACK SIDE ENTRY, MINI TYPE 2628 SERIES

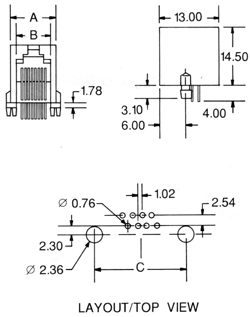

Package Outline Drawing
Dimensions : mm
Product Features:
- Meets FCC Part 68 rules and regulations
- 2-Port type available (6-Position only)
- UL approved
Characteristics
| Electrical Characteristics | |
| Current rating |
1.5 Amps
|
| Insulation resistance |
500 MW Min
|
| Dielectric withstanding voltage |
1000 Volts RMS, 60Hz
|
| Contact resistance |
20 mW Max
|
| Specifications | |
| Housing material |
25% Glass filled Nylon 66 |
| Contact material | 0.46mm Diameter Phosphor Bronze Alloy, plated Gold |

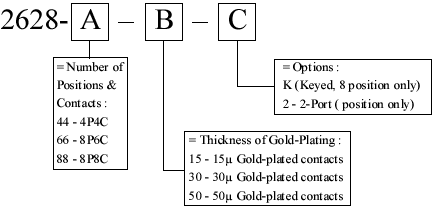

Ordering Information
|
NO of |
A
|
B
|
C
|
|
4
|
10.0
|
7.80
|
10.0
|
|
6
|
12.2
|
9.86
|
12.0
|
|
8
|
15.1
|
12.1
|
15.0
|
