Modular Plugs and Sockets
PCB MOUNTING MODULAR JACK SIDE ENTRY, LOW PROFILE 2810 SERIES

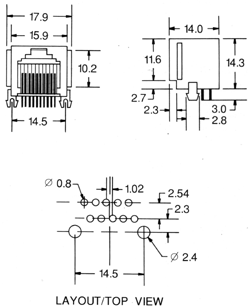

Package Outline Drawing
Dimensions : mm
Product Features:
- Meets FCC Part 68 rules and regulations
- Shielded and Non-shielded types available
- Snap-in board retention tabs
Characteristics
|
Electrical Characteristics |
|
| Current rating |
1.5 Amps
|
| Insulation resistance |
500 MW Min
|
| Dielectric withstanding voltage |
1000 Volts RMS, 60Hz
|
| Contact resistance |
20 mW Max
|
| Specifications | |
| Housing material |
Glass filled PBT (UL 94V-0 rated) |
| Shield material | SUS 301, Thickness 0.25mm |
| Contact material | 0.46mm Diameter Phosphor Bronze Alloy, plated Gold |

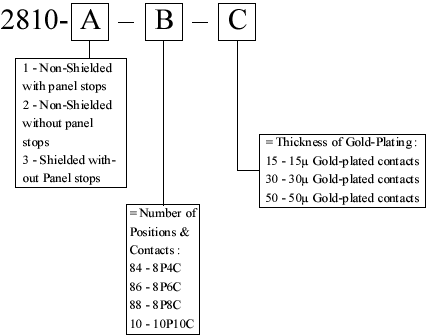

Ordering Information
