Modular Plugs and Sockets
PCB MOUNTING MODULAR JACK SIDE ENTRY, VERY LOW PROFILE 2950 SERIES
Package Outline Drawing
Dimensions : mm
Product Features:
- Meets FCC Part 68 rules and regulations
- Selectively gold plated contacts
- Very Low profile type
- UL approved
Characteristics
| Electrical Characteristics | |
| Current rating |
1.5 Amps
|
| Insulation resistance |
500 MW Min
|
| Dielectric withstanding voltage |
1000 Volts RMS, 60Hz
|
| Contact resistance |
20 mW Max
|
| Specifications | |
| Housing material |
Glass filled PBT (UL 94V-0 rated) |
| Shield material | Tin-plated Brass |
| Contact material | 0.35mm Thickness Phosphor Bronze Alloy, plated Gold in Contact area and Tin-lead on Tail, over Nickel underplate |

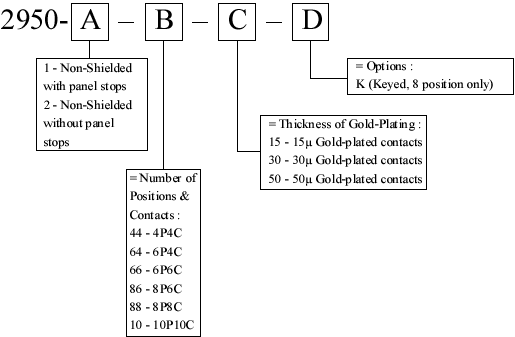

Ordering Information
|
NO of |
NO of |
Dimensions mm |
|
|
A
|
B
|
||
|
4
|
4
|
11.20
|
7.62
|
|
6
|
2/4/6
|
13.20
|
10.16
|
|
8
|
6/8
|
15.20
|
11.43
|
|
10
|
10
|
15.20
|
11.43
|
