Modular Plugs and Sockets

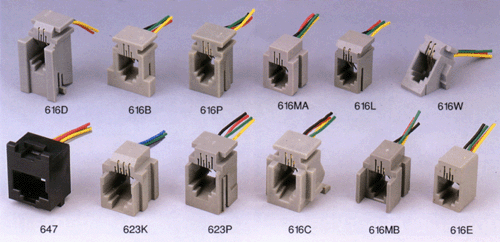

MODULAR JACK WITH LEAD WIRE
Product Features
- Meets FCC requirements
- Lead-wire with terminal-crimping Assembly
- Gold Plated contacts
Characteristics
| Electrical Characteristics | |
| Current rating |
1.5 Amps
|
| Insulation resistance |
10MW
|
| Withstand voltage |
AC 500V 1 Min
|
| Contact Voltage |
20mW min |
| Specifications | |
| Housing material | ABS Resin, Standard colour : Grey |
| Contact material | 0.46mm Diameter Phosphor Bronze Alloy, Plated Gold in contact area, over Nickel underplate |
| Terminal material | 0.4mm Thickness 3/4 Hard Brass, 2.5µ m Solder (Tin-Lead) |
| Terminal style | Strip & Dip, Y-Spade or other options |
| Wire |
UL-1061 E41396 AWM VW-1300V, 26AWG; Insulation : PP |

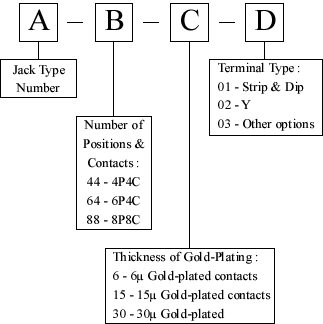

Ordering Information
