Modular Plugs and Sockets
MODULAR PLUG NON-SHIELDED TYPE 310 SERIES

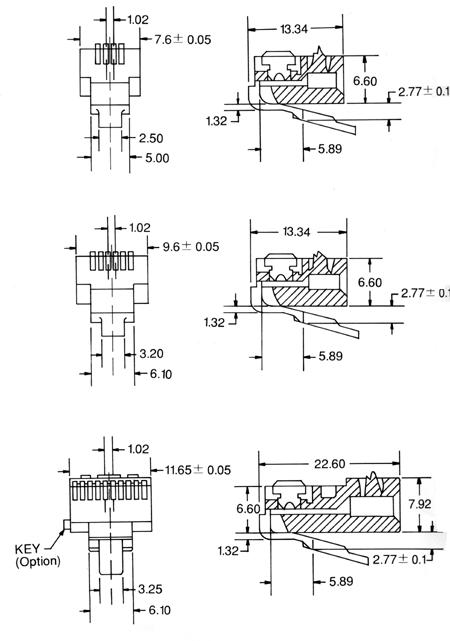

Package Outline Drawing
Dimensions : mm
Product Features
- Meets FCC Part 68 rules and regulations
- Available for round or flat oval cable
- Different contacts for stranded wire or solid wire
- Various positions and housing styles available
- UL approved
Characteristics
|
Electrical Characteristics |
|
| Current rating |
1.5 Amps
|
| Insulation resistance |
500 MW Min
|
| Dielectric withstanding voltage |
1000 Volts RMS, 60Hz
|
| Contact resistance |
20 mW Max |
| Specifications | |
| Housing material | UL 94V-2 rated Polycarbonate |
| Contact material | High Strength Copper Alloy JIS C5191R-H |

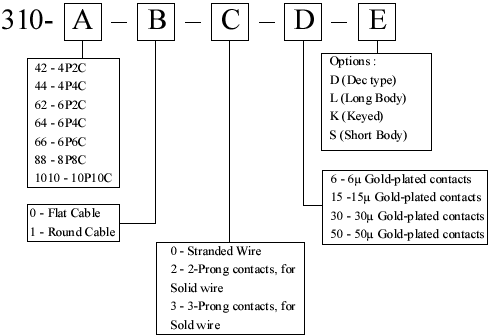

Ordering Information
