Modular Plugs and Sockets
MODULAR PLUG SHIELDED TYPE

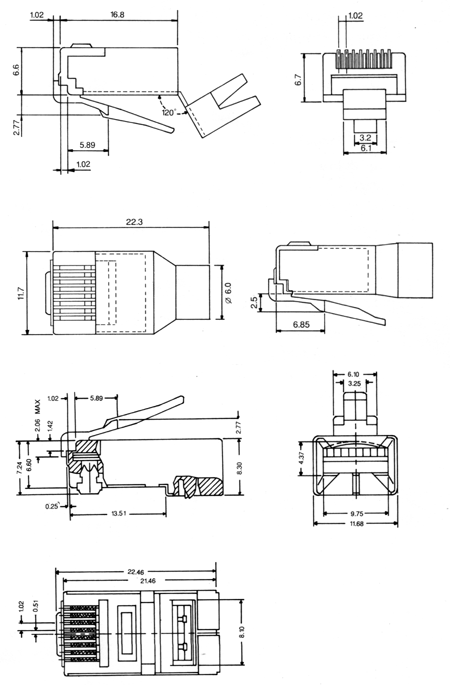

Package Outline Drawing
Dimensions : mm
Product Features
- Meets FCC Part 68 rules and regulations
- Available for round or flat oval cable
- Different contacts for stranded wire or solid wire
- Various housing styles available
- UL approved
Characteristics
|
Electrical Characteristics |
|
| Current rating |
1.5 Amps
|
| Insulation resistance |
500 MW Min
|
| Dielectric withstanding voltage |
1000 Volts RMS, 60Hz
|
| Contact resistance |
20 mW Max |
| Specifications | |
| Housing material | UL 94V-2 rated Polycarbonate |
| Shield | Tin-plated Brass or Tin-plated phosphor Bronze |
| Contact material | High Strength Copper Alloy JIS C5191R-H 50µ Gold-plated |
| Ordering Information | |
| 310880-1-S1 | Stranded wire, Flat cable |
| 310880-2-S1 | Solid wire, Flat cable |
| 310881-1-S1 | Stranded wire, Round cable |
| 310881-2-S1 | Solid wire, 2-prontacts, Round cable |
| 310881-1-S2 | Strain relief type, for stranded wire, Round cable |
| 310881-1-S3 | Strain relief type with Insert Bar, for stranded wire, Round cable |
