SCSI 3 Compatible Connectors

DOUBLE ROW STRAIGHT FEMALE SOCKET

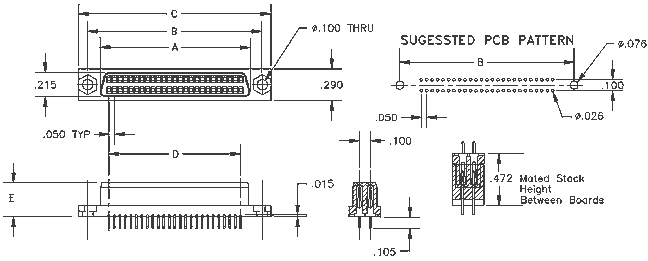

Package Outline Drawing

Dimensions: Inch's

Characteristics

Product Selection Guide
Part Number
"A"
"B"
"C"
"D"
"E"
Plating
Options
YY
Number
of
Positions
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
N8002-20YY
15.60
0.614
21.34
0.84
25.40
1.00
11.43
0.45
 7.62 0.30
P2
20
N8002-26YY
19.41
0.764
25.15
0.99
29.21
1.15
15.24
0.60
 7.62 0.30
P2
26
N8002-28YY
20.68
0.814
26.42
1.04
30.48
1.20
16.51
0.65
 7.62 0.30
P2
28
N8002-40YY
28.30
1.114
34.04
1.34
38.10
1.50
24.13
0.95
 7.62 0.30
P2
40
N8002-50YY
34.65
1.364
40.39
1.59
44.45
1.75
30.48
1.20
 7.62 0.30
P2
50
N8002-60YY
41.00
1.614
46.74
1.84
50.08
2.00
36.83
1.45
 7.62 0.30
P2
60
N8002-68YY
46.08
1.814
51.82
2.04
55.88
2.20
41.91
1.65
 7.62 0.30
P2
68
N8002-80YY
53.70
2.114
59.44
2.34
63.50
2.50
49.53
1.95
 7.62 0.30
P2
80
N8002-96YY
63.86
2.514
69.60
2.74
73.66
2.90
59.69
2.35
 7.62 0.30
P2
96
N8002-100YY
66.40
2.614
72.14
2.84
76.20
3.00
62.23
2.45
 7.62 0.30
P2
100
N8002-120YY
79.10
3.114
84.84
3.34
88.90
3.50
74.93
2.95
 7.62 0.30
P2
120

Technical Information
Contact Material Pin: Stamped, Phosphor Bronze, dual beam
Insulation Material Glass Filled Nylon 46, UL94V-O rated black
Heat Deflection 260°C @ 264 PSI per ASTM D648
Insulation Resistance 5,000 MegOhm @ 500VDC
Current Rtaing 1 amp continuous @ 100VDC/contact
Max Processing Temp 250°C for 60 seconds
Plating P2= Tin/Palladium - 50u"(1.3u) Ni overall, followed by
30u"(.76u) Palladium/Ni overall, followed by 3u"(.08u) gold
on mating area, 150u"9(3.8u) bright tin over balance of pin
Insertion Force 76 grams (2.7oz) (typ initial force per contact w/.016" x .024" pin)
Exertion Force 46 grams (1.6oZ) (typ initial force per contact w/.016" x .024" pin)
