SCSI 3 Compatible Connectors
DOUBLE ROW ROUND PIN STRAIGHT HEADER

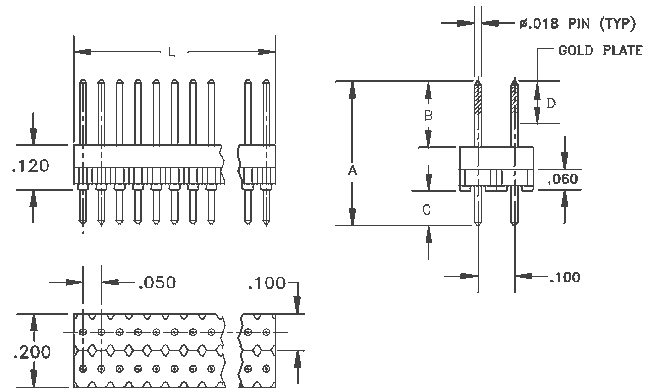

Package Outline Drawing
Dimensions: Inch's
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N8027-XXYY |
10.41
|
0.41
|
5.08
|
0.2
|
2.28
|
0.09
|
3.81
|
0.15
|
T; G2
|
4-100
|
| N8028-XXYY |
6.35
|
0.25
|
1.65
|
0.065
|
1.65
|
0.065
|
3.81
|
0.15
|
T
|
4-100
|
| Technical Information | |
| Contact Material | Pin: Phosphor Bronze, .16"x.024" top/.020" dia end, burr free |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260°C @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 MegOhm @ 500VDC |
| Current Rtaing | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
