SCSI 3 Compatible Connectors
DOUBLE ROW SHROUDED STRAIGHT SMT HEADER

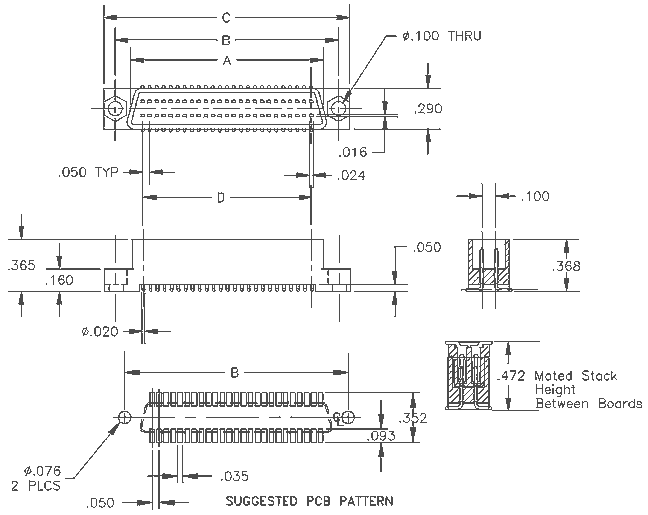

Package Outline Drawing
Dimensions: Inch's
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options YY |
Number
of Positions |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N8056-20YY |
15.80
|
0.622
|
21.34
|
0.84
|
25.4
|
1.00
|
11.43
|
0.45
|
P2
|
20
|
| N8056-26YY |
19.61
|
0.772
|
25.15
|
0.99
|
29.21
|
1.15
|
15.24
|
0.60
|
P2
|
26
|
| N8056-28YY |
20.88
|
0.822
|
26.42
|
1.04
|
30.48
|
1.20
|
16.51
|
0.65
|
P2
|
28
|
| N8056-40YY |
28.50
|
1.122
|
34.04
|
1.34
|
38.10
|
1.50
|
24.13
|
0.95
|
P2
|
40
|
| N8056-50YY |
34.85
|
1.372
|
40.39
|
1.59
|
44.45
|
1.75
|
30.48
|
1.20
|
P2
|
50
|
| N8056-60YY |
41.20
|
1.622
|
46.74
|
1.84
|
50.08
|
2.00
|
36.83
|
1.45
|
P2
|
60
|
| N8056-68YY |
46.28
|
1.822
|
51.82
|
2.04
|
55.88
|
2.20
|
41.91
|
1.65
|
P2
|
68
|
| N8056-80YY |
53.90
|
2.122
|
59.44
|
2.34
|
63.50
|
2.50
|
49.53
|
1.95
|
P2
|
80
|
| N8056-96YY |
64.06
|
2.522
|
69.60
|
2.74
|
73.66
|
2.90
|
59.69
|
2.35
|
P2
|
96
|
| N8056-100YY |
66.60
|
2.622
|
72.14
|
2.84
|
76.20
|
3.00
|
62.23
|
2.45
|
P2
|
100
|
| N8056-120YY |
79.30
|
3.122
|
84.84
|
3.34
|
88.90
|
3.50
|
74.93
|
2.95
|
P2
|
120
|
| Technical Information | |
| Contact Material | Pin: Phosphor Bronze, .16"x.024" top/.020" dia end, burr free |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260°C @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 MegOhm @ 500VDC |
| Current Rtaing | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | P2= Tin/Palladium - 50u"(1.3u) Ni overall, followed
by 30u"(.76u) Palladium/Ni overall, followed by 3u"(.08u) gold on mating area, 150u"9(3.8u) bright tin over balance of pin |
