USB Connectors & Cables
Package Outline
Drawing
 |
|

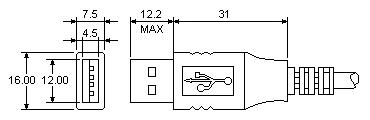

NUSB 1A Cable
|
 |
|

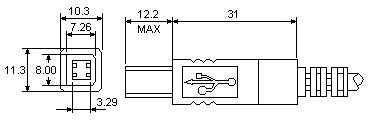

NUSB 1B Cable
|
Dimensions: mm
Features
- The standard USB cable will consist of one pair of 20-28 AWG wire for power distribution with another 28 AWG pair twisted with a shiel and overall jacket.
- This will be used for typical peripherals operating at the rated 12 Mbs signaling.
- An alternative cable of identical gauge but without the twisted conductors and shield can be used for 1.5 Mbs signaling
Cable Selection
 |
 |
 |
|
NUSB 11XXXX
A + Free type |
NUSB 12XXXX
B+ Free type |
NUSB 13XXXX
A + B type |
 |
 |
 |
|
NUSB 14XXXX
A + A type |
NUSB 15XXXX
B + Btype |
NUSB 16XXXX
A + Housing |
 |
||
|
NUSB 17XXXX
B + Housing |
Characteristics
| Electrical Specifications | |
| Capacitance |
Max 2pf (1K Hz test)
|
| Current rating |
1 Amp
|
| Contact resistance |
30 mW Max
|
| Insulation resistance |
1000 MW Min
|
| Dielectric strength |
750 VAC Min
|
| Mechanical Specifications | |
| Durability |
1500 cycles
|
| Mating force |
35N Max
|
| Unmating force |
10N Min
|
|
Storage Temperature |
-40°C to +60°C |
| Operating Temperature |
0°C to +40°C
|
| Vibration | No discontinuities of 1 µs or longer duration |
| Physical shock | No discontinuities of 1 µs or longer duration |
| Environmental Specifications | |
| Thermal shock | -55°C to +85°C, 5 cycles |
| Temperature life | 85°C for 250 hours |
| Humidity | 96 hours at 40°C with 90% to 95% RH |

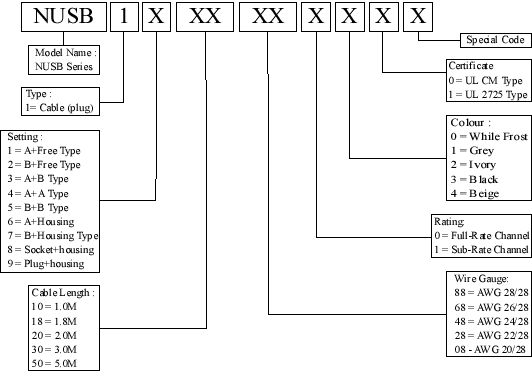

Part Numbering System
