USB Connectors & Cables

Mini USB Cables

Package Outline Drawing

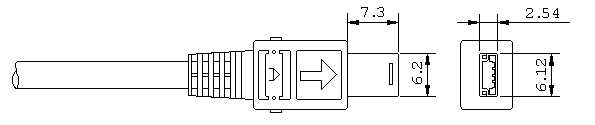

Mini USB A Type Cable (4 Pin)

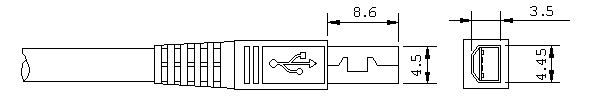

Mini USB B Type Cable (4 Pin)

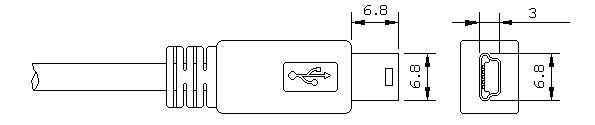

Mini USB B & C Type Cable (5 Pin)

Dimensions: mm

Features

  • Ultra-small size
  • Both 4pin type and 5pin (One ID) Pin are 0.8mm pitch
  • 4Pin type is full compliant with current USB 1.0 specifications
  • 5Pin type is full compliant with current USB 2.0 specifications
  • Receptacle and plug housing are UL 94V-O grade fire retardant
  • Gold plated contact ensure low contact resistance
  • EMI protection by shielding features
  • Idea for connecting portable PC's as slim notebook PC's and handheld PC's to small, slim peripheral equipment (digital cameras, small mouse, PDA, MP3, Hub end Equipment etc)

Characteristics

Electrical Specifications
Voltage rating
30 VAC (rms)
Current rating
1 Amp
Contact resistance
50 mW Max
Insulation resistance
100 MW Min
Dielectric strength
100 VAC Min

Mechanical Specifications
Durability
1500 cycles
Mating force
35N Max
Unmating force
10N Min

Storage Temperature

-40°C to +60°C

Operating Temperature
0°C to +40°C

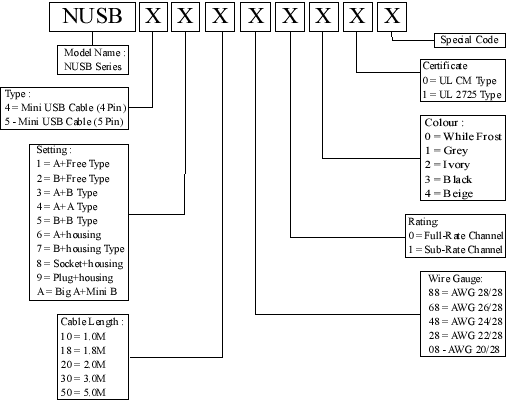

Part Numbering System
