USB Connectors & Cables
NUSB 012 SERIES Right Angle A Type Double Port

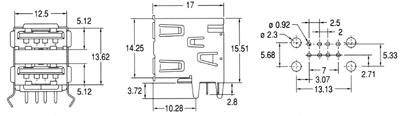

Package Outline Drawing
Dimensions: mm
Features
- Raised design provides easy insertion and withdrawal along with high reliability
- Gold-plated contacts to ensure low contact resistance
- All materials are UL 94V-0 grade fire retardan
- Up to 5 metres per cable segment
Characteristics
| Electrical Specifications | |
| Voltage rating |
30 VAC (rms)
|
| Current rating |
1 Amp
|
| Contact resistance |
30 mW Max
|
| Insulation resistance |
1000 MW Min
|
| Dielectric strength |
750 VAC Min
|
| Mechanical Specifications | |
| Durability |
1500 cycles
|
| Mating force |
35N Max
|
| Unmating force |
10N Min
|
|
Storage Temperature |
-40°C to +60°C |
| Operating Temperature |
0°C to +40°C
|
Part Numbering System
