MINI
USB NUSB 34101 SERIES SMD B Type (5pin)

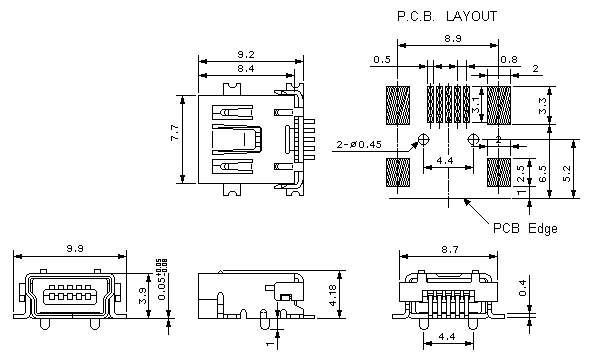

Package Outline Drawing
Dimensions: mm
Features
- Ultra-small size
- Both 4pin type and 5pin (One ID) Pin are 0.8mm pitch
- 4Pin type is full compliant with current USB 1.0 specifications
- 5Pin type is full compliant with current USB 2.0 specifications
- Receptacle and plug housing are UL 94V-O grade fire retardant
- Gold plated contact ensure low contact resistance
- EMI protection by shielding features
- Idea for connecting portable PC's as slim notebook PC's and handheld PC's to small, slim peripheral equipment (digital cameras, small mouse, PDA, MP3, Hub end Equipment etc)
Characteristics
| Electrical Specifications | |
| Voltage rating |
30 VAC (rms)
|
| Current rating |
1 Amp
|
| Contact resistance |
50 mW Max
|
| Insulation resistance |
100 MW Min
|
| Dielectric strength |
100 VAC Min
|
| Mechanical Specifications | |
| Durability |
1500 cycles
|
| Mating force |
35N Max
|
| Unmating force |
2.9N Min
|
|
Storage Temperature |
-40°C to +60°C |
| Operating Temperature |
0°C to +40°C
|

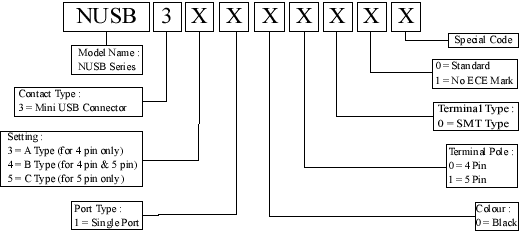

Part Numbering System
