NUSB 661x10 SERIES IEEE 1394 Connector Surface
Mount Single Port

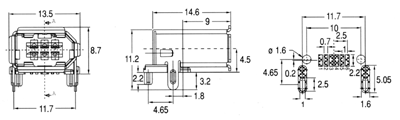

Package Outline Drawing
Dimensions: mm
Features
- Raised design provides easy insertion and withdrawal along with high reliability
- Gold-plated contacts to ensure low contact resistance
- All materials are UL 94V-0 grade fire retardan
- Up to 4.5 metres per cable segment
Characteristics
| Electrical Specifications | |
| Current rating |
1 Amp
|
| Contact resistance |
30 mW Max
|
| Insulation resistance |
100 MW Min
|
| Dielectric strength |
500 VDC Min
|
| Mechanical Specifications | |
| Durability |
1500 cycles
|
| Unmating force |
9.8N Min, 39.2N Max
|
|
Storage Temperature |
-40°C to +60°C |
| Operating Temperature |
0°C to +40°C
|
| Vibration |
No Discontinuites of 1µs or longer duration
|
| Mechanical Shock | No Discontinuites of 1µs or longer duration |

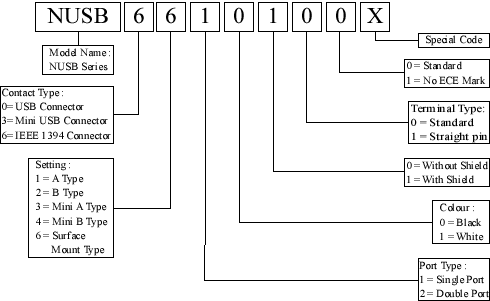

Part Numbering System
