Flexible Flat Cable
CRIMPFLEX FLEXCABLE JUMPERSNicomatic can now offer a 24hr-turnaround sample service on its custom designed range of Crimpflex flexcable jumpers.
The flat, flexible cables, equipped with Crimpflex
connectors, are made of flat copper conductors both sides adhesive bonded
to polyester. Available in a 0.076mm thickness, they have the added advantage
of being extremely flexible and compliant, easily bendable to suit a variety
of circuits and applications.
 |
 |
 |
 |
Available in 2.54mm pitch and 02 to 36 ways, jumpers can be provided with male to male contacts, male/female, female/female, and with male or female contacts equipped with single or double row housings and compatible with HE13 and HE14 connectors.
The male/male flexcable jumpers, available in lengths specified by the customer, come as standard with copper conductors and male contacts at both ends. Options available are for the solder tabs to be right angle formed; contacts to be insulated with polyimide adhesive and for flexcable jumpers of <35mm to be equipped with short contacts. Male/female and female to female contacts can however have gold plated contacts, be equipped with a polarisation and locking device and are particularly suitable for high vibration applications.
| Specification | |
| UL | E 125657 (M) and E 125469 (F). |
| LNZ (SNET) | list no 6145 tin plated version (HE14), list no 6160 gold plated version (HE13) |
| Material | Phosphor Bronze |
| Plateing | tin over nickel or gold and tin over tickel |
| Mechanical endurance | 50 cycles min |
| Contact resistance to stripping from circuit | Þ15
N min perpendicular to the tracks (breaking-up of the conductor) Þ50 N min parallel to the tracks (breaking-up of the conductor) |
| Electricial Specifications | |
| Contact resistance | 5 m W maxi |
| Contact resistance after climatic tests | 6 m W maxi |
| Insulation resistance | 5.1000000M. / 500 V |
| Withstanding voltage | 1100 V RMS |
| Capacitance between two contacts | 4 pF max |
| Current rating per contact | 3 A |
| Thermic Specifications | |
| Operating temperature |
-55°C to +105°C |
| Connectors withstanding temperature |
-55°C to +150°C |
| Flammability rating |
UL94VO
|
| Mechanical Specifications | |
| Flex life |
0 = once |
Select below for termination/housing options

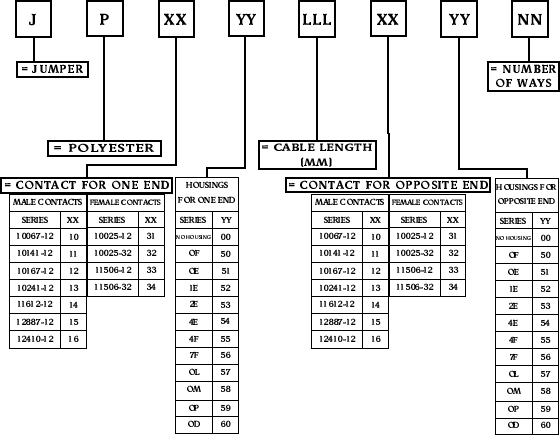

Part Numbering System
