Flexible Flat Cable
The flat cable used for our flexcable jumpers equipped with
CRIMPFLEX® connectors, are made of flat copper conductors both sides
adhesive bonded to aluminium foils.
Cable can be supplied either in reel quantity (normaly 500 feet), by the
metre or cut to a specific length.
| Characteristics | |
| Dimensions |
Bare copper conductors, section 1.57 x 0.076 (AWG
26 guage). For other sections, please consult us.
|
| Pitch |
2.54mm
|
| Number of conductors |
2 to 25
|
| Width |
2.54 x (n+1) with n=2 to 25
|
| Insulators width (inferior and superior) |
0.1mm
|
| Colour |
white
|
| Electricial Specifications | |
| Operating voltage |
300 V RMS
|
| Testing voltage |
1500 V RMS
|
| Current rating per conductor |
3 A
|
| Lead resistance |
160 W /Km
|
| Dielectric withstanding voltage |
150 KV/mm
|
| Capacity |
18pF/m
|
| Impedance |
110 W
|
| Thermic Specifications | |
| Polyester |
-40°C to +150°C |
| Polyimide |
-55°C to +230°C |
| Mechanical Specifications | |
| Flex life |
0 = once |

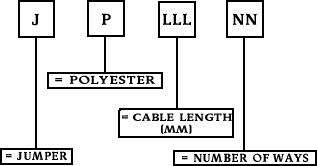

Part Numbering System
