SMD Chip Led
ULTRA THIN LED'S Z SERIES SUITABLE FOR MEMBRANE SWITCHESFeatures and Applications
- 0.5mm High
- Overall Size 3.2 x 1.6 x 0.5mm
- Reduce Spacer Thickness and/or Eliminate Embossing
- 8mm Tape and Reel for Automated pick and place
- Available form stock
- Bi-colours and Blue or White leds available

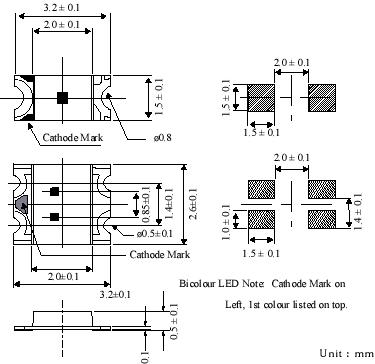

Package Outline Dimensions

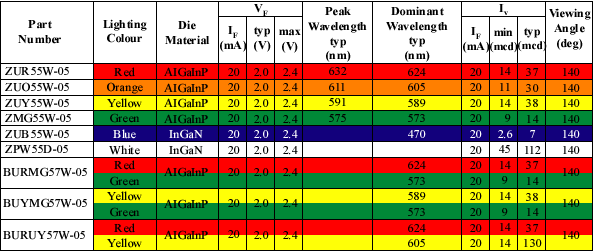

Electro-Optical Characteristics
Absolute Maximum Ratings
| Current | Rating |
| Reverse Voltage (VR) | 5V |
| Forward Current (IF) | 25 ma |
| Operating Temperature | -40 to +85 Deg C |
| Storage Temperature | -40 to +90 Deg C |
| Soldering Temperature | 260 for 5 sec C |
| Electrostatic Discharge | 2000V |
| Power Dissipation | 60 mW |
|
Peak Forward Current |
160 mA |
