| CMM Micro-Connector |
 |
FEMALE CRIMP 302 SERIES

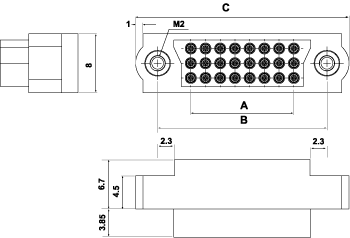

Package Outline Drawing
Dimensions : mm
|
Contact
|
Type u
|
AWG
|
|
12468
|
S
|
24-28
|
|
13064
|
C
|
22
|
XX : Number of contacts
n: Fixing
(select here for details)
Select here for crimp contacts
| Part Number |
No of Contacts
|
Dimensions | ||
|
A
|
B
|
C
|
||
| 301u 18nnn |
18
|
10
|
19
|
25
|
| 301u 24nnn |
24
|
14
|
23
|
29
|
| 301u 27nnn |
27
|
16
|
25
|
31
|
| 301u 33nnn |
33
|
20
|
29
|
35
|
| 301u 36nnn |
36
|
22
|
31
|
37
|
| 301u42nnn |
42
|
26
|
35
|
41
|
| 301u45nnn |
45
|
28
|
37
|
43
|
| 301u51nnn |
51
|
32
|
41
|
47
|
| 301u54nnn |
54
|
34
|
43
|
49
|
| 301u60nnn |
60
|
38
|
47
|
53
|
| 301u63nnn |
63
|
40
|
49
|
55
|
| 301u69nnn |
69
|
44
|
53
|
59
|
| 301u72nnn |
72
|
46
|
55
|
61
|
| 301u78nnn |
78
|
50
|
59
|
65
|
| 301u 81nnn |
81
|
52
|
61
|
67
|
| 301u 87nnn |
87
|
56
|
65
|
71
|
| 301u 90nnn |
90
|
58
|
67
|
73
|
| 301u 96nnn |
96
|
62
|
71
|
77
|
Contacts can be ordered seperately
Part no: C12468 AWG 24-28
Part no: C13064 AWG 22

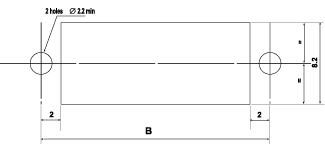

Panel Mounting
| Characteristics | ||
| All contacts |
3 A max @ 25ºC |
|
| 2.2 A max @ 85°C | ||
| Working voltage (sea level) | 240V DC | |
| Proof voltage | 360V DC | |
| Contact resistance (initially) | max 10mW | |
| Insulation resistance |
1 000 M W min |
|
| Mechanical operations | 500 cycles min | |
| Contact insertion and withdrawal force | 2 N max, 0.2 min | |
| Contact retention in insulator | 10 N min | |
| Environmental/Materials | ||
| Insulator | Fibreglass filled thermoplastic UL94VO | |
| Contacts | Male: Tin plated copper alloy, hard acid gold plated | |
|
Female: |
Gold or tin-plated copper alloy socket |
|
| Fixing Hardware | Latch: Beryllium copper alloy socket | |
| Jackscrew: stainless steel CMM 300 series | ||
| Operating Temperature | from -55°C to + 125°C (IEC 68-1) | |
| from -67°F to 257°F | ||
| Complies with vapour phase and infrared techniques | ||
| Vibration severity | 0.75mm, 10 g RMS 6 hours long random with superimposed sinusoid. No imtermittancies measured when using an H.S.L.I (High Speed Logic Interrupt) detector with a trip threshold of 2 ns | |
| Shock severity | 100 g for 6 ms | |
| Resistance | HcFc 141 bMGX (ATOCHEM) solvent | |

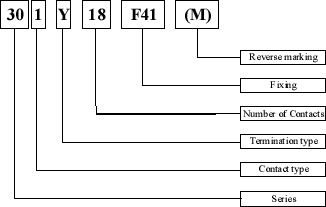

Part Numbering System
|
PCB
|
Nicomatic
|
|
| Series | ||
| Three rows |
~
|
3
|
| Contact Type | ||
| Male |
~
|
1
|
| Female |
~
|
2
|
| Number of contacts |
~
|
18 up to 96
|
| Termination type | ||
| 90° pc (male only) |
1.6
|
V
|
| 90° pc (male only) |
3.2
|
VL
|
| Straight pc (male and female) |
1.6
|
Y
|
| Straight pc (male and female) |
3.2
|
YL
|
| Crimp 24-28 AWG (male and female) |
~
|
S
|
| Crimp 24-28 AWG (male and female) |
~
|
C
|
| Fixings | ||
| Jack Screws |
~
|
select here for details
|
| Marking | ||
| Standard |
~
|
leave blank
|
| Reverse |
~
|
M
|
