SMD Chip Led

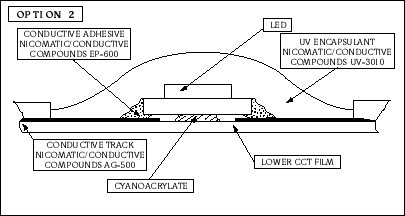

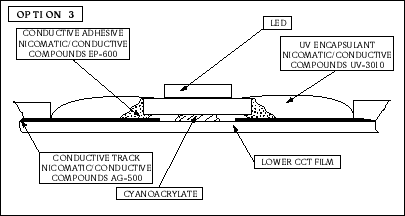

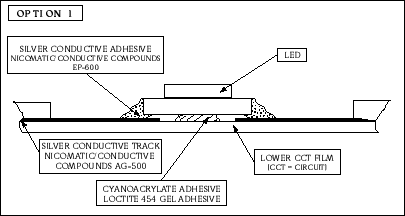

Below are some suggested methods for mounting of leds to flexible membranes and circuits

Select here for details of our own range of low profile chip led's developed specifically for the membrane switch market.
