SWITCHAIR® METAL DOMES

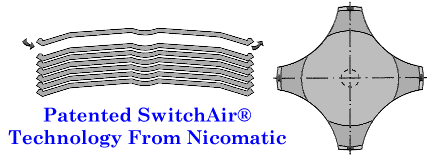

Nicomatic's patented SwitchAir® technology ensures that the domes do not stick together thereby elimating the possibility of "double-doming". Due to the fact that the domes do not stick together it is also possible to introduce various levels of automation to the placement of the metal domes and hence reducing the cost of use. (Click here to go to our automation options)

The benefits of using patented SwitchAir® domes are:

  • Eliminates "double-doming"
  • Excellent tactile effect even after rigorous overload tests
  • Life cycle: 1 million cycles guaranteed
  • Stable forces
  • Control of dimensional tolerances
  • No burrs thus eliminating the scratching effect
  • Wide temperature range
  • Reduced placement cost
  • Elimination of contamination risks
  • Available in loose, tube or as an array

Production Capacity

Nicomatic is one of the worlds largest producers of metal domes:

  • 3 million domes per day
  • 700 million domes per year

Quality Control

  • 1 million actuation guaranteed

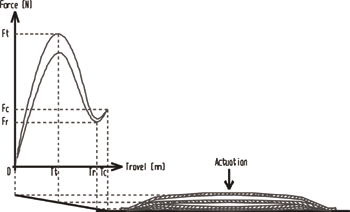

Typical force versus travel curve for a metal dome: this force is generated using a standard steel test probe on computer controlled equipment.

  • Optical tri-dimensional equipment which controls domes precisely

Packaging

Switch'Air non stick domes can be ordered in a variety of different ways:


bulk qunatities

Electrical Characteristics

Specification
Material
Stainless steel
Plating
Standard nickel: av 0.1µm
Optional gold: av 0.15µm
Environmental
Storage -55°C to + 125°C
Operating -40°C to + 105°C
Working Voltage
0.1 to 100V
Working Intensity
5 to 100mA
Contact Resistance
<100mR


Patented SwitchAir® domes have the following specifications:

Product Selection Guide

12.2mm Four Legged Domes (12.2-4-LEG Series)

  • Diameter : 12.2mm
  • With and without dimple
  • Force : 220 / 280 / 340 grammes
  • Plating : nickel plating of 0.1 microns or optional one side gold plated

8.4mm Four Legged Domes (8.4-4-LEG Series)

  • Diameter : 8.4mm
  • With and without dimple
  • Force : 220 / 280 grammes
  • Plating : nickel plating of 0.1 microns or optional one side gold plated

6mm Four Legged Domes (6-4-LEG Series)

  • Diameter 6mm
  • With and without dimple
  • Force : 170 grammes
  • Plating : nickel plating of 0.1 microns or optional one side gold plated

5mm Round Domes (5-R Series)

  • Diameter : 5mm
  • With and without dimple
  • Force: 150 & 180 grammes
  • Plating : nickel plating of 0.1 microns or optional one side gold plated

4mm Round Domes (4-R Series) - available late 2001

  • Diameter : 4mm
  • With and without dimple
  • Force : 180 grammes
  • Plating : nickel plating of 0.1 microns or optional one side gold plated
