| CMM Micro-Connector |
 |
MALE PCB WITH CAVITIES FOR SPECIAL CONTACTS 221Y SERIES

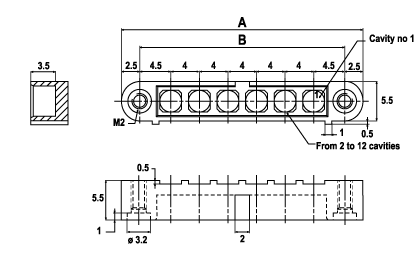

Package Outline Drawing
Dimensions : mm
| Product Selection Guide | |||
| Part Number |
No of Cavities
|
A
|
B
|
| 221Y 0 Fxx - 22 - u |
4
|
26
|
21
|
| 221Y 0 Fxx - 33 - u |
6
|
34
|
29
|
| 221Y 0 Fxx - 44 - u |
8
|
42
|
37
|
| 221Y 0 Fxx - 55 - u |
10
|
50
|
45
|
| 221Y 0 Fxx - 66 - u |
12
|
58
|
53
|
Select here for special Signal and Coax contacts/pcb layout or Signal and High Power contacts/pcb layout.
| Characteristics | ||
| All contacts |
3 A max @ 25ºC |
|
| 2.2 A max @ 85°C | ||
| Working voltage (sea level) | 240V DC | |
| Proof voltage | 360V DC | |
| Contact resistance (initially) | max 10mW | |
| Insulation resistance |
1 000 M W min |
|
| Mechanical operations | 500 cycles min | |
| Contact insertion and withdrawal force | 2 N max, 0.2 min | |
| Contact retention in insulator | 10 N min | |
| Environmental/Materials | ||
| Insulator | Fibreglass filled thermoplastic UL94VO | |
| Contacts | Male: Tin plated copper alloy, hard acid gold plated | |
|
Female: |
Gold or tin-plated copper alloy socket |
|
| Fixing Hardware | Latch: Beryllium copper alloy socket | |
| Jackscrew: stainless steel CMM 300 series | ||
| Operating Temperature | from -55°C to + 125°C (IEC 68-1) | |
| from -67°F to 257°F | ||
| Complies with vapour phase and infrared techniques | ||
| Vibration severity | 0.75mm, 10 g RMS 6 hours long random with superimposed sinusoid. No imtermittancies measured when using an H.S.L.I (High Speed Logic Interrupt) detector with a trip threshold of 2 ns | |
| Shock severity | 100 g for 6 ms | |
| Resistance | HcFc 141 bMGX (ATOCHEM) solvent | |
Part Numbering System
xx : fixing select here for details
u : Power/coax contacts PN° when all
cavities loaded
